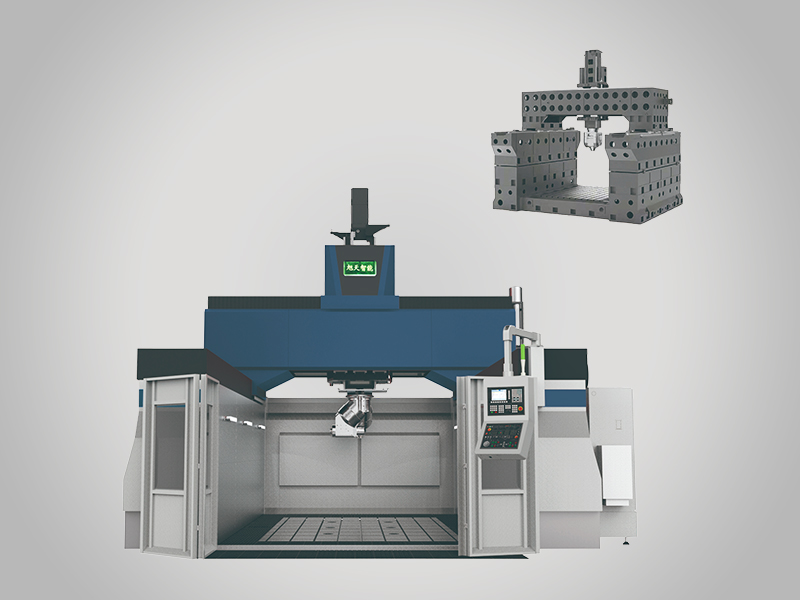

GMT SERIES

GMT系列主要技術(shù)參數(shù)

Item		Unit	GMT1613	GMT2013	GMT2216	GMT2516	GMT3220-5S	GMT4028-5S
Worktable	Worktable Size (L×W)	mm	1700×1400	2100×1400	2000×1600	2500×1600	3200×2000	4000×2600
	Max. Worktable Load	T/m2	6	6	6	6	8	8
	T-slot (No. of slots-slot width×pitch)	mm	9-18×125	9-18×125	9-18×125	8-18×180	10-18×180	9-18×278
	Worktable Longitudinal Travel (X-axis)	mm	1600	2000	2200	2500	3200	4000
Travel Range	Crossbeam Lateral Travel (Y-axis)	mm	1300	1300	1600	1600	2000	2800
	Headstock Vertical Travel (Z-axis)	mm	600	600	800	800	1000	1250
	Gantry Width	mm	1600	1600	1900	2100	3050	3500
	Max. Height of Workpiece	mm	1000	1000	1200	1250	1250	1500
	Distance from Spindle Face to Worktable	mm	400–1000	400–1000	400–1200	450–1250	250–1250	250–1500
Spindle	Spindle Type	/	Mechanical Spindle	Mechanical Spindle	Mechanical Spindle	Electric Spindle	Electric Spindle	Electric Spindle
	Max. Spindle Speed	rpm	12000	12000	12000	18000	18000	18000
	Spindle Taper	/	BBT50	BBT50	BBT50	HSK-A63	HSK-A63	HSK-A63
Feed Rate	Rapid Traverse Speed (X/Y/Z)	m/min	10/10/10	10/10/10	10/10/10	10/10/10	10/10/10	10/10/10
	Cutting Feed Rate	mm/min	1–10000	1–10000	1–10000	1–10000	1–10000	1–10000
Motor	Spindle Motor Power	kW	26	26	26	30	30	30
	Servo Motor Torque (X/Y/Z)	Nm	36/36/36	36/36/36	36/36/36	36/36/36	48/48/48	48/48/48
	Coolant Pump Motor Power	kW	1.5	1.5	1.5	1.5	1.5	1.5
Accuracy	Positioning Accuracy (X/Y/Z)	mm	0.025/0.020/0.015	0.025/0.020/0.015	0.025/0.020/0.015	0.025/0.020/0.015	0.025/0.020/0.015	0.014/0.012/0.010
	Repeat Positioning Accuracy (X/Y/Z)	mm	0.014/0.012/0.010	0.014/0.012/0.010	0.014/0.012/0.010	0.014/0.012/0.010	0.014/0.012/0.010	0.014/0.012/0.010
Feed Drive	Linear Guide (X/Y/Z)	mm	45/2; 45/2; Slide	45/2; 45/2; Slide	45/2; 45/2; Slide	45/2; 45/2; Slide	55/2; 55/2; 45/4	65/4; 65/4; 55/4
	Ball Screw (X/Y/Z)	mm	50/50/50	50/50/50	55/2/50/10/5010	6310/50/10/5010	6312; 5010;	8020; 6312;
System	CNC System	/	SIEMENS 828D	SIEMENS 828D	SIEMENS 828D	SIEMENS 828D	SIEMENS 828D	SIEMENS 828D
Power Supply	Power Supply	KVA	35	35	45	45	60	60
Air Pressure	Air Demand	kg/cm2	≥6	≥6	≥6	≥6	≥6	≥6
	Air Flow Rate	m3/min	≥0.5	≥0.5	≥0.5	≥0.5	≥0.5	≥0.5
ATC Option	ATC Type	/	Chain Type	Chain Type	Chain Type	Chain Type	Chain Type	Chain Type
	ATC Capacity	pcs	32	32	32	32	32	32
	Max. Tool Weight	kg	8	8	8	8	8	8
	Max. Tool Diameter (Full)	mm	80	80	80	80	80	80
	Max. Tool Diameter (Adjacent Empty)	mm	120	120	120	120	120	120
	Max. Tool Length	mm	300	300	300	300	300	300
	Tool Change Time	s	3.8	3.8	3.8	3.8	3.8	3.8
Machine Dimensions	Floor Space (L×W×H)	mm	4850×4000×3200	6500×4300×3200	5400×3400×3900	6000×3400×3900	4850×4000×3200	6500×4300×3200
	Machine Weight (Approx.)	kg	15000	18000	24000	26000	50000	55000
Note	Technical parameters are subject to change without prior notice.
