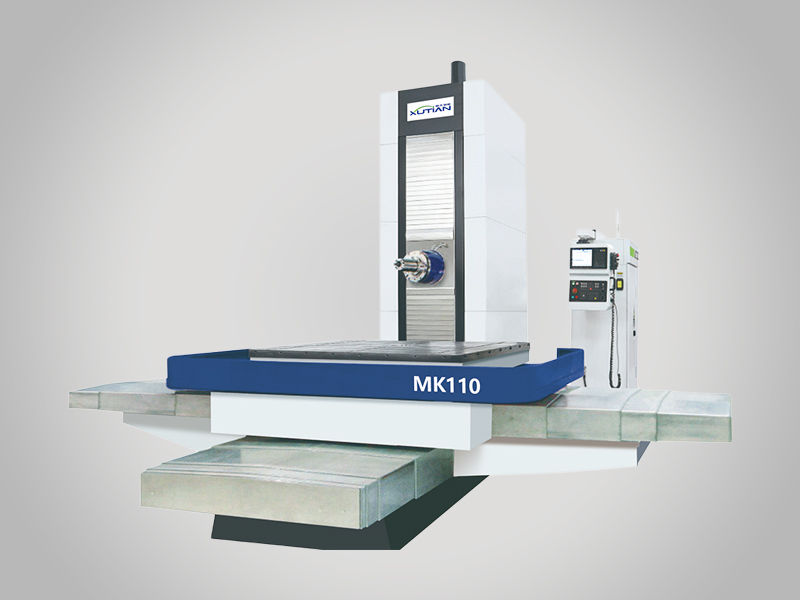

MK Series Optional Configurations

• Tool magazine

• Full closed-loop grating ruler

• Right angle milling head

• Face plate

• FANUC / SIEMENS CNC system or other CNC systems

• Item	Unit	MK110-A	MK110-B
  Worktable
  Worktable Size (L×W)	mm	1000×1200	1200×1400
  Max. Worktable Load	kg	5000	8000
  T-slot (Slot Width)	mm	22	22
  Locating Hole	mm	Φ60H7	Φ60H7
  Indexing Angle	/	1°	1°
  Travel Range
  Table Travel (X-axis)	mm	1500	1700
  Headstock Travel (Y-axis)	mm	900	900
  Column Travel (Z-axis)	mm	700	700
  Boring Spindle Travel (W-axis)	mm	550	550
  Spindle
  Spindle Diameter	mm	Φ110	Φ110
  Spindle Taper	/	BT50	BT50
  Max. Spindle Torque	Nm	850-1150	850-1150
  Max. Spindle Thrust Force	N	15000	15000
  Spindle Speed	r/min	20~2500	20~2500
  Transmission Type	/	BF Gear Box	BF Gear Box
  Feed Rate
  Rapid Traverse (X/Y/Z/W)	m/min	10/10/10/6	10/10/10/6
  Cutting Feed Rate (X/Y/Z/W)	m/min	5/5/5/3	5/5/5/3
  Motor
  Max. Spindle Motor Power	kW	18.5	18.5
  Accuracy
  Positioning Accuracy (X/Y/Z/W)	mm	0.018/0.025/0.018/0.025	0.018/0.025/0.018/0.025
  Repeat Positioning Accuracy (X/Y/Z/W)	mm	0.015/0.02/0.015/0.02	0.015/0.02/0.015/0.02
  Rotary Table Positioning Accuracy	arcsec	15	15
  Rotary Table Repeatability	arcsec	4	4
  System
  CNC System	/	SYNTEC	SYNTEC
  Power Supply
  Power Supply	KVA	≥30	≥40
  Air Pressure
  Air Requirement	kg/cm2	≥6	≥6
  Air Flow	m3/min	≥0.5	≥0.5
  Machine Dimensions
  Approx. Floor Space (L×W×H)	mm	3900×4200×3100	3900×4200×3100
  Machine Weight (Approx.)	kg	13000	17000
  Technical specifications are subject to change without prior notice.
